Description

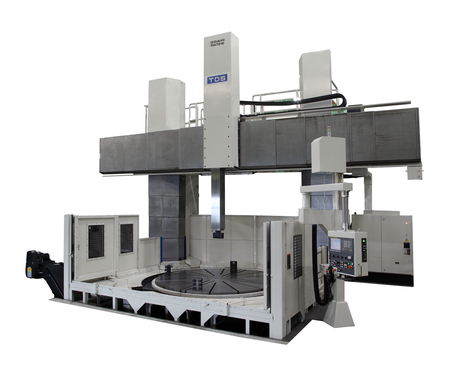

TDS series is used to manufacture large diameter and heavy work pieces with exceptional accuracy and productivity. Fanuc 31iB control.

Features:
- BIG PLUS, 5-face cutter head designed for AATC
Standard 5-face cutter head is designed and manufactured for the tool shank of BIG-PLUS. (AATC, AAI compatible)
- Automatic attachment indexing device (AAI - 5degee or -1degree)
There are two ways for program as bellow. Automatic indexing at every 5 degree or every 1 degree: M37C. When selected three-dimensional coordinate conversion in CNC: G37C.
- Table Lubricant Oil Cooling unit
The bed is made of cast iron, having rationally arranged ribs to completely support the table. Additionally, a thermally symmetrical design and a standard equipped lubricant oil cooling unit contribute to minimize thermal distortion to realize a high thermal-rigidity structure
- SHAPE recognition preview control function (CNC SHAPE)
Shape recognition preview positioning control (CNC shape II). Target are accurate shape and smooth surface in contouring surface machining.
- Automatic measuring RENISHAW probe
This unit consists of a radio touch probe made by Renishaw, a standard measuring software designed by Shibaura Machine and calibration block for checking compensation value of touch probe.
- Automatic Tool length measuring unit (BLUM) for vertical spindle only
This unit is located at the left corner of floor plate. Only vertical spindle center point tools correspond. Reference tool for calibration is excluded.
- Automatic measuring RENISHAW probe (Optional)
This unit consists of a radio touch probe made by Renishaw, a standard measuring software designed by Shibaura Machine and calibration block for checking compensation value of touch probe
- Automatic Tool setting RENISHAW probe (Optional)
This unit consists of a Renishaw probe to measure tool length and compensate value of tool offset
