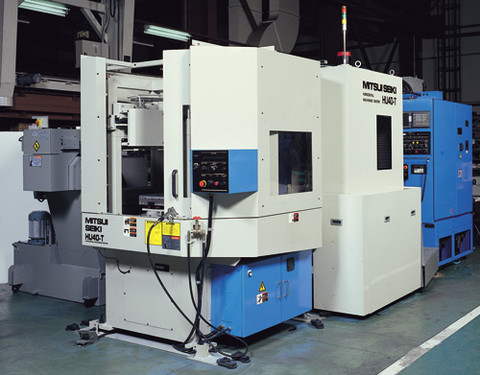

Mitsui Seiki 5 axis High Production Machining Center

Description

HU-T Table-on-Table Series

• This is a built-in type horizontal 5-Axes machining center where C-axis table is placed on the B-axis.
• HU40-T and HU50-T have a 360 dia. Palette four APC as standard specifications.
• Other specifications including 400 palette APC models, 360 dia. Fixed table models, automatic workpiece change by 50T taper tool shank are available.
• HU63-T has a 600 dia. large fixed table and loading weight is 300 kg which makes it suitable for 5-axes machining of large workpeices.
• By adopting integrated B-axis and C-axis and three-roller bearing, rigidity is improved.
• Indexing speed of B-axis/C-axis is unprecedented (Rapid feed/cutting feed rate of 30 min-1 at both B-axis and C-axis). In addition, rapid rising is realized.
• Numerically controlled with all standard equipment and features including: Automatic Tool Changer, and high production capability for high speed 5-axis milling, drilling, boring, tapping and reaming.
• Integrated circuit logic, closed loop, complete electrical equipment for operation on: 3-phases, 50/60Hz, 200/220 Volts AC.
• CNC Control Fanuc 30i

Specifications

Quantity Available 1
Type High Production Machining Center
Condition New

Pricing



Manske Machinery, Inc.
414-543-8800
