Mitsui Seiki 5 axis Trunnion Type Horizontal Machining Centers

Description

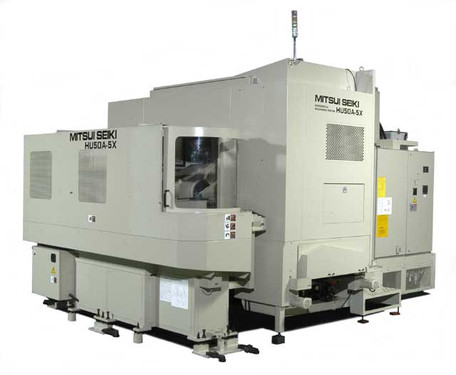

HU-5X Trunnion Series:

- Mitsui Seiki has the #1 delivery record for trunnion type horizontal 5-axes machining centers
- A wide variety of palette sizes ranging from 500 to 1000 square are available
- The center of rotation of A-axis is higher than the palette, so rigidity against processing thrust is high and effect of index precision is low.
- B-axis sliding surfaces adopts a hybrid method of sliding and rolling, which has both the rigidity of sliding and smooth motion of rolling.
- A fastest A- and B- axes indexing speed in the class reduces process time.
- Numerically controlled with all standard equipment and features including: Automatic Tool Changer, Automatic Pallet Changer, and high production capability for milling, drilling, boring, tapping and reaming.
- I
ntegrated circuit logic, closed loop, complete electrical equipment for operation on: 3-phases, 50/60Hz, 200/220 Volts AC.
- Models HU100A-5X and HU100A-5XL with a trunnion style wo axis table and two Pallet Box Style and features including a Two Pallet APC
- CNC Control Fanuc 30i

Specifications

Quantity Available 1
Type Horizontal Machining Center

Pricing



Manske Machinery, Inc.
414-543-8800
